Hot Plates & Stirrers 加熱磁力攪拌器
Torrey Pines Scientific Analog, Digital and Fully Programmable Hot Plates, Stirrers, and Stirring Hot Plates for Routine Lab Work or Complicated Research. Units of choice in research, QA and manufacturing labs all over the world.

Note: the hot plates are offered with milled-flat cast aluminum heater tops or solid ceramic heater tops. Aluminum is best for working with solids directly on the heater surface. Aluminum heats more evenly across the plate surface and is more rugged than ceramic. The ceramic heater tops heat and cool faster and are recommend for use when heating solutions in a vessel. Ceramic tops resist chemical spills much better than aluminum tops.

Hotplate Stirrer 加熱磁力攪拌器

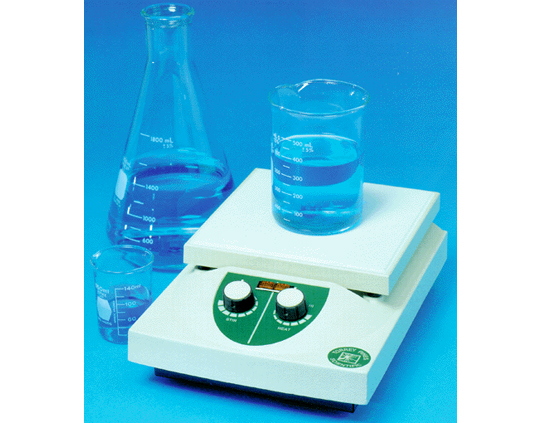

HS10-2 加熱磁力攪拌器 Hotplate Stirrer
Brand: Torrey Pines Scientific
Country: USA

Heat, stir, or heat and stir on a rugged, quick heating, flat, white, solid ceramic heater surface.

analog hotplate stirrer / stirrer hotplate / magnetic stirrer / 加熱磁力攪拌器

Heat to 450°C on plate surface in minutes
Stir from 100 to 600 rpm
Large heater plate size: 8″ (20.32cm) x 8″ (20.32cm)
Solid ceramic heater surface for excellent chemical resistance
Heater plate mounted in cast aluminum frame that remains cool for safety
Efficient 600-watt heaters
Fused for safety
Rugged cast aluminum chassis
UL, CSA, and CE certified

Specifications:

Unit size : 12″ (33cm) deep x 9″ (22.9cm) wide x 3.5″ (8.9cm) tall
Unit Weight, unpacked : 10 pounds (4.5kg)
Unit Weight, packed : 12 pounds (5.4kg)

Electrical :
Operating voltages : 230VAC
Power Consumption : 650 watts
Current Draw : 3.25A

Ordering information:

Model : HP10-2 Hotplate only

Model : ST10-2 Stirrer only

Model : HS10-2 Hotplate Stirrer

HS20-2 加熱磁力攪拌器 Hotplate Stirrer

DigiLogTM Stirrers, Hot Plates, and Stirring Hot Plates

digital hotplate stirrer / stirrer hotplate / magnetic stirrer / 加熱磁力攪拌器

New, Hybrid Technology offers digital and analog features for easy, reproduciable use at analog hot plate, stirrer and stirring hot plate prices.

Product Description:
The new Digilog series represents state of the art electronic technology applied to simple hot plates and stirrers. In effect, these units are hybrids of analog and digital units combining features of both to make reliable, easy to use units that are priced like simple analog units. All are UL, CSA and CE compliant.

Digital Features
3-digit display of heater power as a percent of total range for easy resetting. No need to mark the heater knob or front panel.
Membrane keyboard setting of all parameters. Easy scroll up or down settings. No mechanical controls at all!
Two memory keys for saving your 2 favorite combinations of temperature and stirring speed for one button instant recall at any time.
“Plate Hot” red LED illuminates when plate temperature goes above 50°C and stays lit when the plate is hot even after the unit is turned off. A really nice safety feature.
Main power ON/OFF button on the front panel for easy, safe access. Prior settings are retained when the unit is turned off and the unit will return to those settings automatically when turned on again.
Indicator lights and ON/OFF buttons for heater and stirrer power. Turn either off with a single button. Turn on again and the prior settings remain.
Heater power regulated even through changes in line voltage. Heater temperature stays much more stable than standard analog units.
Low plate temperature settings as low as 30ºC.

Product Specification:

Hot Plate: Solid ceramic top
Maximum temperature of the plate surface 450°C
Time to maximum temperature, unloaded under 5 minutes
Temperature control ±2.0°C
Heater power, watts 400 watts

Stirrer: Speed range unloaded 100 to 1500 rpm
Maximum load, aqueous 2 liters
Magnet strength 20 pounds
Weight capacity on heater surface 35 pounds (15.75kg)

Electrical:
Operating voltages 230VAC
Power consumption: 450 watts , 35 watts
Current Draw 100/115VAC: 3.5A 230VAC: 1.8A

Dimensions:
Unit size 10″(25.4cm) deep, 7″ (17.78cm) wide, 4.5″ (11.43cm) tall
